Multi Volt Tools

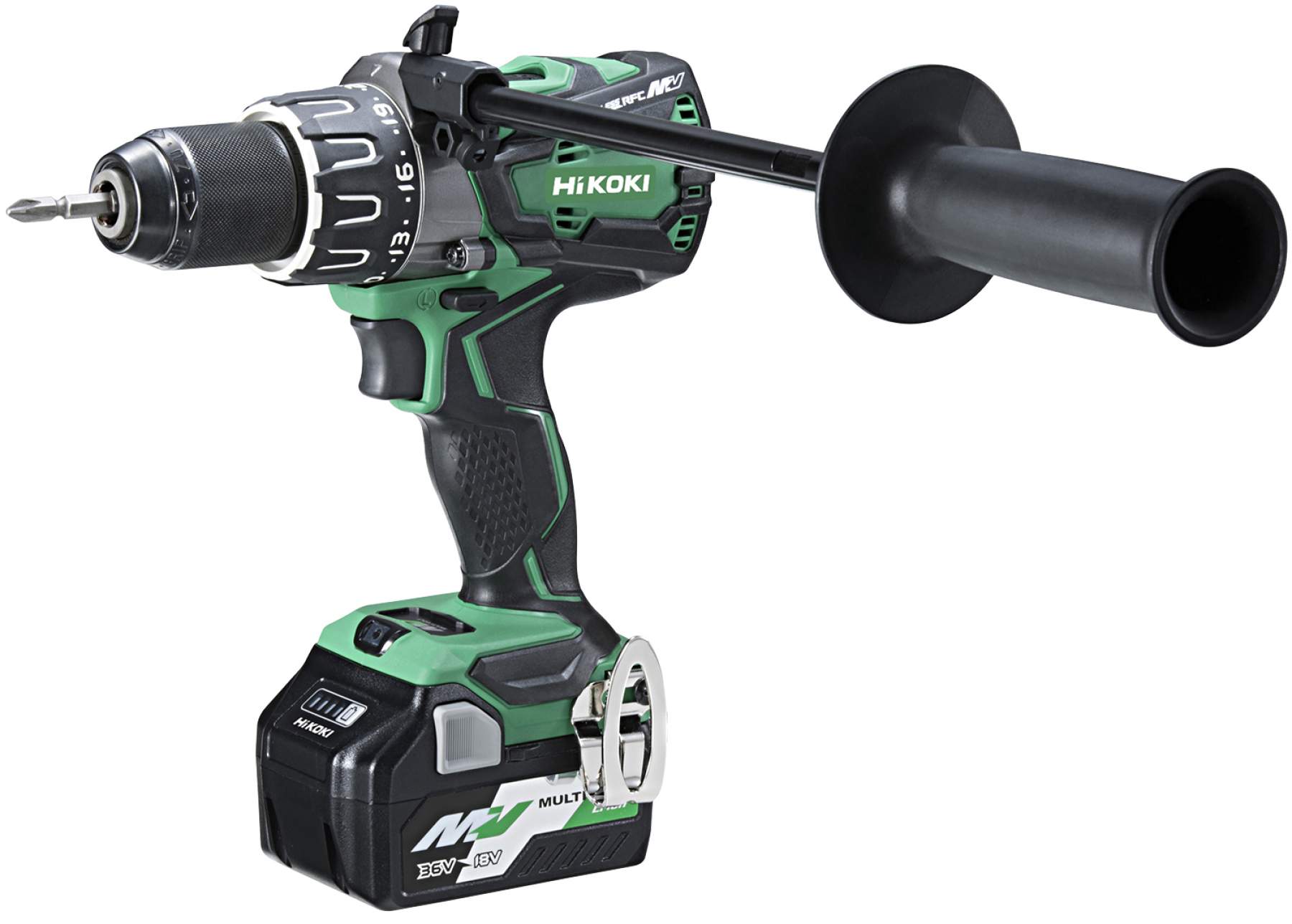

DS36DAX 36V Drill/Driver

Product sheet
36V Drill/Driver
36V Drill/Driver


High performance 36V drill/driver with high efficiency brushless motor

36V Multi Volt batteries for high power output similar to mains powered tools

Batteries are compatible with existing Hitachi 18V tools

High overload capacity

Huge maximum hard torque of 138Nm

Reactive Force Control (RFC) safety feature

Compact body - only 204mm long

Brushless motor

High performance Röhm chuck with spindle lock

22 stage torque setting

Robust aluminium gear case

Built-in LED work light

Fast charger with 32 minute charge time and USB output


Chuck Capacity 1.5-13mm
Capacity Mild steel 16mm | soft wood 102mm | wood screw 12 x 100mm |machine screw 6mm
No-load speed High 0-2100/min | low 0-500/mi
Maximum torque 138Nm
Length 204mm
Weight 2.7kg
Standard accessories side handle | driver bit | case

DS36DAX + 2 x BSL36A18 batteries + UC18YSL3 charger
GTIN 4966376311538

Body only
GTIN 4966376311521

3 year automatic warranty subject to terms & conditions. Eligible for 5 year warranty when registered within 4 weeks of purchase. Please remember to retain your proof of purchase.
