DH36DPA MULTI VOLT(36V) Brushless SDS-Plus Hammer

Product sheet

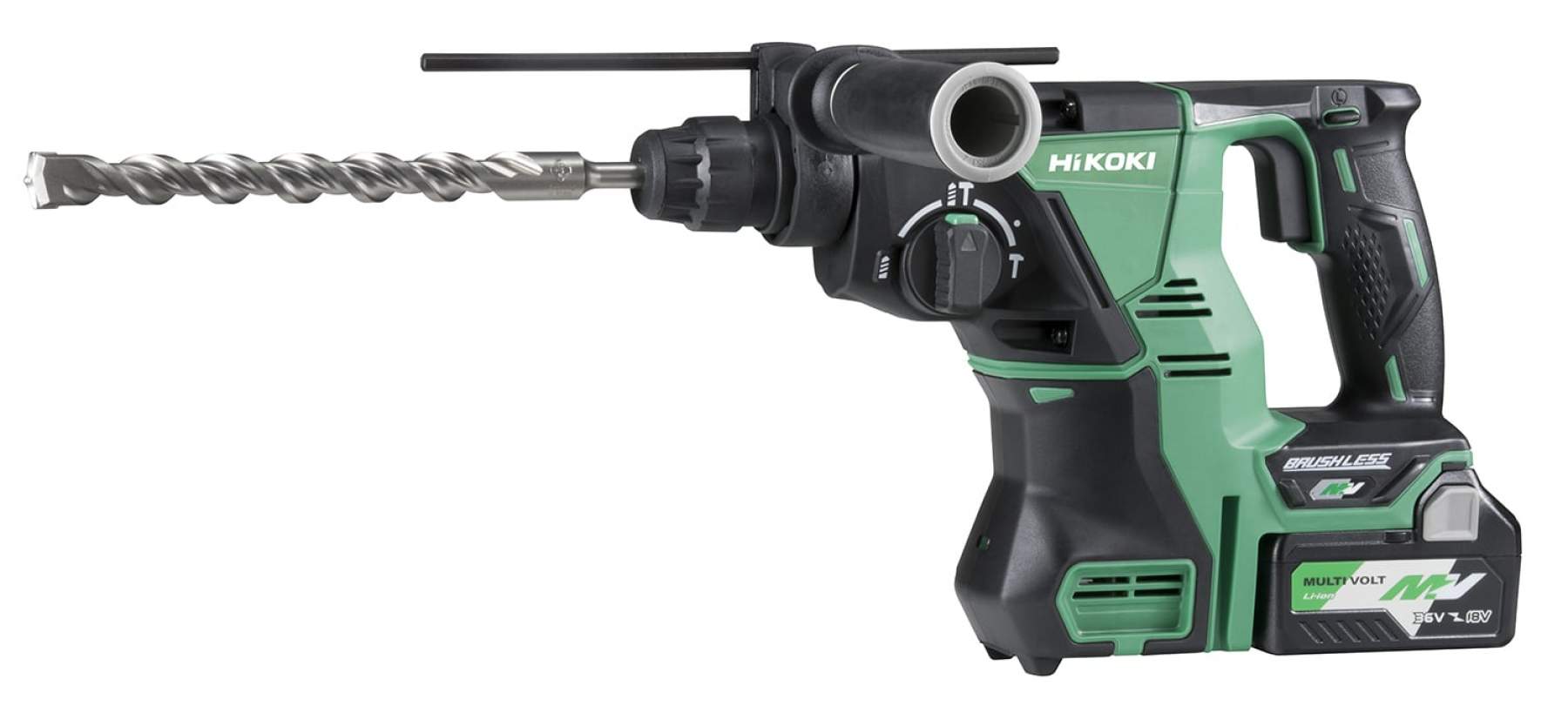

MULTI VOLT(36V) Brushless SDS-Plus Hammer


  • High performance SDS-Plus hammer drill with high efficiency brushless motor
  • High overload capacity
  • 3 mode action - drilling, hammer drilling & chiselling
  • Compact, lightweight & ergonomic design
  • Electronic brake for greater operator safety
  • Drill bit not included

Multi Volt

  • 36V Multi Volt batteries for higher power output similar to mains powered tools
  • Batteries are compatable with existing HiKOKI 18v tools
  • Offers unprecedented power output of up to 1080W
  • Power output similar to mains powered tools when used with a 36V tool*
  • Automatically switches between 18V 5.0Ah and 36V 2.5Ah depending on the tool in use
  • Fast charging - only 32 minutes with UC18YSL3 charger
  • 4 stage battery level indicator with diagnostic function
  • Compatible with existing 18V chargers and the new UC36YSL
  • Compact and lightweight - similar size and weight as existing 18V 5Ah & 6Ah batteries

*Not compatible with previous non-Multi Volt 36V tools. Specification is subject to change without notice.


Overall length 351mm
Weight 3.9kg
Impact energy 3.3 Joules
No-load speed 0 - 1100/min
Full load impact rate 0 - 4300/min
Capacity Concrete 28mm | Wood 32mm | Steel 13mm

3 year automatic warranty subject to terms & conditions. Eligible for 5 year warranty when registered within 4 weeks of purchase. Please remember to retain your proof of purchase.
